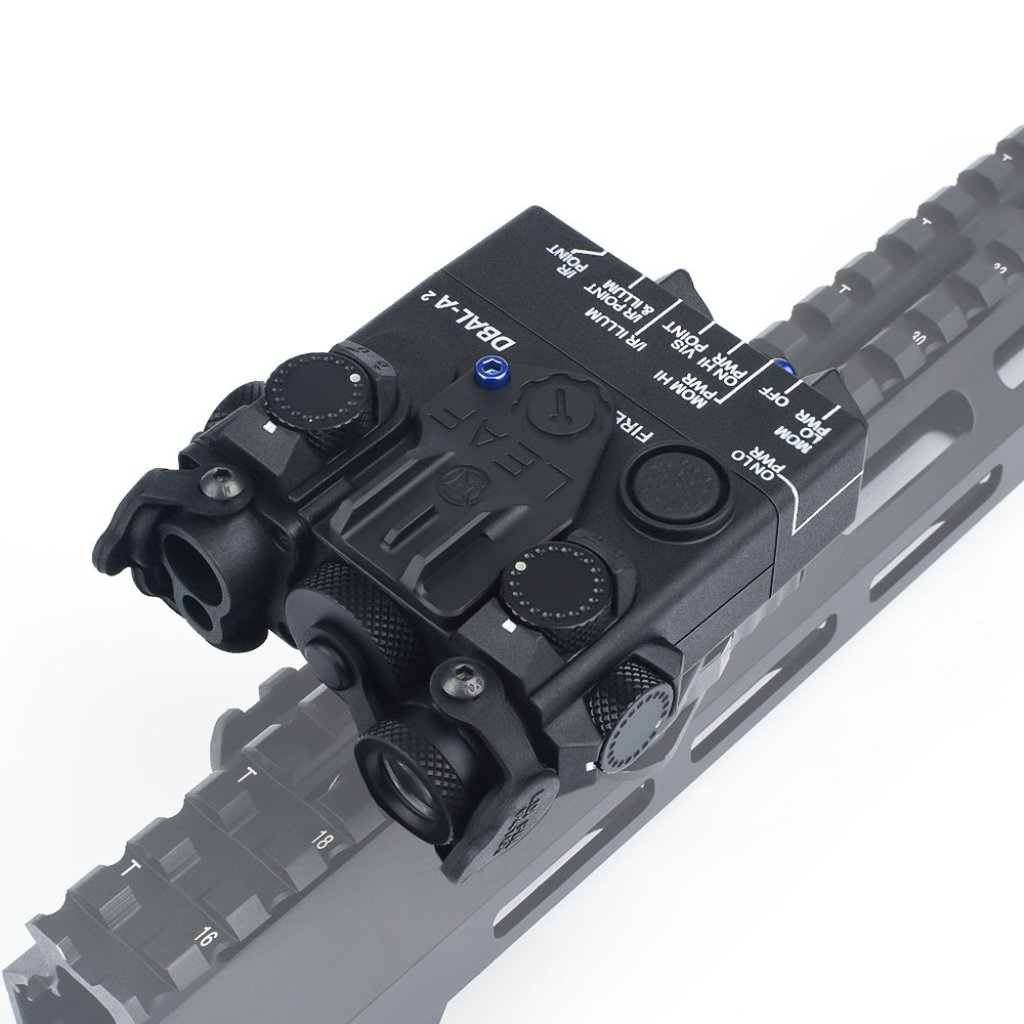

Element DBAL-2 Style Aiming Devices BK (Led Light / Red & IR Laser)

-Material: The exterior is made of nylon fiber, and the mount part is made of metal.
・Product dimensions: Total length approx. 87mm, total width approx. 70mm, total height approx. 43mm
・Body weight: Approx. 128g
・Package size: Total length approx. 125mm, total width approx. 100mm, total height approx. 65mm
・Total weight (including packaging): Approx. 238g
・Power: CR123A battery x 1
・Compatible manufacturers and models: Various main bodies equipped with 20mm rail

This is a DBAL-A2 (Dual Beam Aiming Laser - Advanced 2) type LED light.
You can insert a CR123 battery by removing the lid at the front center of the main unit.

◆Switch operation explanation◆
≪Mode select knob (rear left side of main unit)≫
ON LO PWR = Lighting with switch ON/OFF switch in low output state
MOM LO PWR = Lights up only when the switch is pressed in low output state
OFF=Switch circuit OFF state
MOM HI PWR = Lights up only when the switch is pressed in high output state
ON HI PWR = Lighting with switch ON/OFF switch in high output state

≪Function select knob (rear right side of main unit)≫
VIS POINT= Laser lighting
I/R ILLUM = LED light on
I/R POINT&ILLUM = LED Light/strobe lighting
I/R POINT = IR Laser lighting

*IR LED LENS can be replaced

HOW TO INSTALLL USING QD

1.Keep pressing the button 2.Push the QD handle in the opposite diredtion 3.Hold down the QD handle and adjust the screw to the screw to the position you want 4.After installiing the guide rail push the QD handle in the opposite direction

HOW TO INSTALL THE BATTERY

PLEASE INSTALL 1*CR123A(3.0B) BATTERIES (NOT INCLUDE) 1.Unscrew the battery compartment nut 2.Open battery compartment 3.Insert the battery 4.Tighten the battery compartment nut
